Panasoni̇c fp7cps31es cpu

PANASONİC FP7CPS31ES CPU

Yeni İndirimli

PANASONİC FP7CPS31ES CPU

503,00 USD 875,00 USD

PANASONİC FP7CPS31ES Ethernet, RS232C, 11nS Çevrim

Ürün Kodu :	FP7CPS31ES
Kategori :	Plc'ler ve aksesuarlar, Fp7 serisi ve modülleri, Panasonic plc'ler ve aksesuarlar
Etiketler :	FP7CPS31ES , FP7CPS41ES , FP7CPS21ES
Stok :	Sorunuz

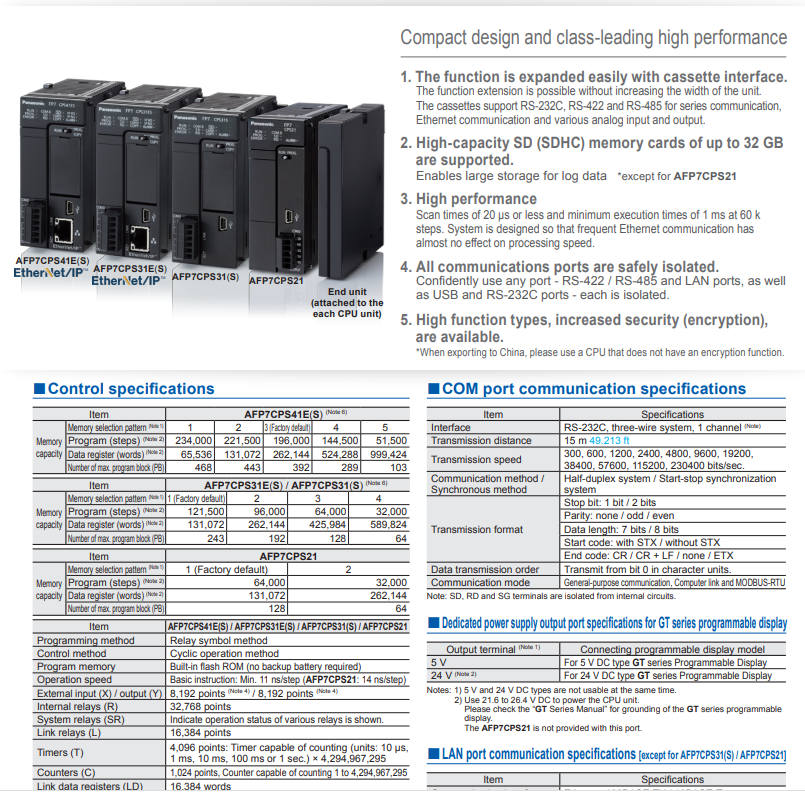

Control specifications

Item	Specifications
Memory capacity:Memory selection pattern1	Program (steps): 121,500 Data register (Note 1): 131,072 Number of max. program block (PB): 243 (Note) The factory default setting is pattern 1. (Note 1) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern2	Program (steps): 96,000 Data register (Note) : 262,144 Number of max. program block (PB): 192 (Note) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern3	Program (steps): 64,000 Data register (Note) : 425,984 Number of max. program block (PB): 128 (Note) For data register (DT), data up to 262,144 words can be backed up.
Memory capacity:Memory selection pattern4	Program (steps): 32,000 Data register (Note) : 589,824 Number of max. program block (PB): 64 (Note) For data register (DT), data up to 262,144 words can be backed up.
Programming method	Relay symbol method
Control method	Cyclic operation method
Program memory	Built-in flash ROM (no backup battery required)
Operation speed	Basic instruction: min. 11 ns/step
External input (X)	8,192 points (Note) Hardware configuration governs the actually usable number of I/O points. When I/O points are not actually used, usable as internal relays.
External output (Y)	8,192 points (Note) Hardware configuration governs the actually usable number of I/O points. When I/O points are not actually used, usable as internal relays.
Internal relay (R)	32,768 points
System relay (SR)	Indicate operation status of various relays is shown.
Link relay (L)	16,384 points
Timer (T)	4,096 points: Timer capable of counting (units: 10 micro s, 1 ms, 10 ms, 100 ms or 1 sec.) x 4,294,967,295
Counter (C)	1,024 points, Counter capable of counting 1 to 4,294,967,295
Link data register (LD)	16,384 words
System data register (SD)	Internal operation status of various registers is shown.
Index register (I0 to IE)	15 long words / With switching function
Master control relay (MCR)	Unlimited
Number of labels (LOOP)	Max. 65,535 points for each program block (PB)
Differential points	Unlimited
Number of step ladders	Unlimited
Number of subroutines	Max. 65,535 points for each program block (PB)
Number of interrupt program	1 periodical interrupt program
SD memory card function	SDHC memory cards of up to 32 GB are usable.
Constant scan	Available (0 to 125 ms)
Clock / calendar	Year (last two digits), month, day, hours (24-hour display) minutes, seconds, day of week (Note)Precision of calendar; At 0 ℃ +32 ℉, 95 sec. or less error per month, at +25 ℃ +77 ℉, 15 sec. or less error per month, at +55 ℃ +131 ℉, 130 sec. or less error per month
Battery life (Value applies when no power is supplied at all.)	3.3 years or more (when no power is supplied) actual usage value: 20 years approx. (at 25 degrees 77 degrees Fahrenheit )
Safety function	Password / Restricted distribution / Read disable setting / Encryption
PLC link function (Serial communication / MEWNET-W0)	Max. 16 units, link relays: 1,024 points, link registers: 128 words. (Data transfer and remote programming are not supported) (Link area allocation is switchable between the first and the second half)

Communication specifications for COM port

Item	Specifications
Interface	RS-232C, three-wire system, 1 channel (Note) SD, RD and SG terminals are isolated from internal circuits.
Transmission distance	15 m 49.213 ft
Transmission speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bits/sec,
Communication method	Half-duplex system
Synchronous method	Start-stop synchronization system
Transmission format	Stop bit: 1 bit / 2 bits Parity: none / odd / even Data length: 7 bits / 8 bits Start code: with STX / without STX End code: CR / CR + LF / none / ETX
Data transmission order	Transmit from bit 0 in character units.
Connection	General-purpose communication, Computer link and MODBUS-RTU

Dedicated power supply output port specifications for GT series programmable display

Item	Specifications
Terminal:5V	For 5 V DC type GT series Programmable Display (Note) 5 V and 24 V DC types are not usable at the same time.
Terminal:24V	For 24 V DC type GT series Programmable Display (Note 1) 5 V and 24 V DC types are not usable at the same time. (Note 2) Use 21.6 to 26.4 V DC to power the CPU unit. Please check the “GT Series Hardware Manual” for grounding of the GT series programmable display.

LAN communication port specifications

Item	Specifications
Communication interface	Ethernet 100BASE-TX / 10BASE-TX
Communication speed	100 Mbps, 10 Mbps auto negotiation function
Total cable length	100 m 328 ft (500 m 1,640 ft when a repeater is used)
Number of nodes	Max. 254 units
Number of simultaneous connections	Max. 220 connections (user connection: 216, system connection: 4)
Communication protocol (Communication layer)	TCP / IP, UDP
DNS	Supports name servers
DHCP / DHCPV6	Automatic IP address acquisition
FTP server / Client (SSL compatible)	Server function, file transfer, number of user: 3 Client function, data and file transfer
HTTP server / Client (SSL compatible)	Server function, system web, Customer web (8 MB), number of concurrent session: 16 Client function, data transfer
SMTP client (SSL compatible)	Client function, mail transfer
SNTP	Time adjustment function
General-purpose communication	16 kB / 1 connection (user connection: 1 to 16)
Dedicated communication	Slave communication (MEWTOCOL-COM, MEWTOCOL7-COM, MEWTOCOL-DAT, MODBUS-TCP, MC protocol (Note)) Master communication (MEWTOCOL-COM, MEWTOCOL-DAT, MODBUS-TCP, MC protocol (Note)) (Note): MC protocol is a short form denoting MELSEC communication protocol; MELSEC is a registered trademark of Mitsubishi Electric Corporation. QnA compatible 3E frame, only binary (bulk writing and bulk reading) use is available.

Common general specifications

Item	Specifications
Ambient temperature	0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity	10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
Vibration resistance	5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s², 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
Shock resistance	147 m/s² or more , 3 times each in X, Y, and Z directions (IEC61131-2)
Noise immunity	1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
Operating condition	Free from corrosive gasses and excessive dust
